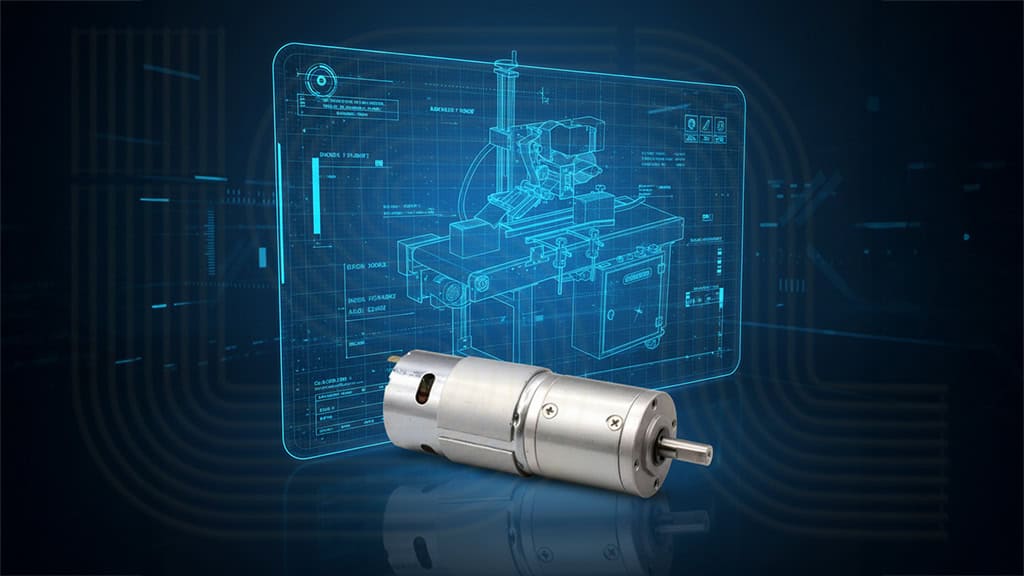

Case Study: PGM-42-24-84-83-02 Brushed Planetary Gear Motor in Labeling Automation Machinery
Executive Summary
This report presents a comprehensive case study and technical analysis of the PGM-42-24-84-83-02 (MOT-IG42GM-1:84) brushed planetary gear motor, specifically evaluating its suitability for integration into industrial labeling machinery. The analysis confirms the motor’s core functional design as a high-torque, compact solution for intermittent-duty applications. However, a critical review of publicly available data revealed significant and contradictory information regarding key performance metrics, including rated and stall torque, necessitating a professional caution against reliance on unverified online specifications.
The PGM-42-24-84-83-02 is well-suited for specific roles within labeling machines, particularly those requiring frequent start-stop cycles and variable speed, such as a bottle rotator or a wipe-on applicator. Its primary advantages are a simplified control scheme and a lower initial cost compared to more advanced motor technologies. The motor represents a pragmatic engineering choice where the application’s performance demands are aligned with the capabilities of a mature, cost-effective technology.
In a broader industry context, while the PGM-42-24-84-83-02 remains a viable component, its brushed design presents inherent trade-offs. Its lower efficiency compared to brushless alternatives position it as a solution best deployed in scenarios where a lower initial investment is a critical factor. For continuous-duty, high-precision, or high-speed applications, more modern technologies such as brushless DC, stepper, or servo motors are demonstrably superior and provide a lower total cost of ownership.
Introduction
In the industrial automation and packaging sectors, the selection of electromechanical components is a pivotal design decision that directly influences a machine’s performance, reliability, and total cost of ownership. Motors, as the fundamental source of motion, are at the core of this selection process. For a labeling machine, the motor must fulfill a demanding set of requirements that include precise speed control, the ability to handle varying loads, and reliable operation through frequent start-and-stop cycles.
This report is designed to serve as a detailed technical evaluation of the PGM-42-24-84-83-02 brushed planetary gear motor for its specific application in a labeling machine. The analysis proceeds with a rigorous, data-driven approach, beginning with a verification of its technical specifications. This is followed by a functional analysis of how the motor’s characteristics align with the operational needs of labeling systems. Finally, the report provides a multi-faceted comparison of this motor against alternative technologies commonly used in the industry, offering a nuanced perspective on its strengths, limitations, and optimal application scenarios. The objective is to provide a comprehensive, data-backed analysis to inform critical engineering and procurement decisions.
The PGM-42-24-84-83-02 Motor: A Technical Profile
Product Identification and Overview
The PGM-42-24-84-83-02 is a brushed DC gear motor featuring a 42mm diameter planetary gearhead. Its design is based on a mature and widely understood technology. The “brushed” designation refers to the use of carbon or precious metal brushes that physically contact a rotating commutator to transfer electrical current to the motor’s rotor windings. This mechanical commutation system is foundational to its operation.
The motor’s intrinsic speed is modified by an integrated planetary gearhead. This component consists of multiple gears arranged concentrically, which provides a highly effective means of transmitting mechanical power. The planetary gearhead is a key feature, as it is able to convert the motor’s native high-speed, low-torque output into the low-speed, high-torque profile required for industrial applications like labeling. This design provides a compact solution that can deliver a high gear ratio and a substantial torque output, making it well-suited for use in space-constrained equipment.
Verified Technical Specifications
A crucial step in evaluating any industrial component is the verification of its performance data. In the case of the PGM-42-24-84-83-02, a review of various online sources reveals significant and problematic discrepancies in the reported specifications. This finding underscores the importance of a detailed, professional analysis rather than a simple reliance on a single data source. The following table highlights the most notable contradictions, particularly with respect to torque values, which are foundational for any mechanical design.
| Specification | ISL Product Page |
| Rated Voltage | 24VDC |
| Rated Speed | 59 rpm |
| Rated Torque | 66 kg.cm |
| No-Load Speed | 83 rpm |
| No-Load Current | 0.5 A |
| Stall Torque | 227 kg.cm (*Gearbox limitations are set at 85 kg.cm) |
Application Analysis: PGM-42-24-84-83-02 in Labeling Machines
Operational Requirements of Labeling Systems
Labeling machines in the packaging industry are subject to a wide range of motion control requirements. While a basic conveyor system may only require a motor for continuous, unidirectional operation, more complex systems demand versatility. A bottle rotator or a wipe-on applicator, for example, needs to start and stop frequently, with the potential for sudden speed changes, change of rotational direction or dynamic braking to ensure the label is applied correctly to a product moving down the line. These applications are often characterized by intermittent duty cycles, where the motor operates in short, intense bursts rather than continuously all day. Furthermore, the motor must provide sufficient torque to overcome the static friction and force required to peel the label from its backing and apply it firmly and consistently to the product.
Motor-Application Alignment
The PGM-42-24-84-83-02’s characteristics align well with these demands. The planetary gearhead is crucial, as it provides the substantial torque necessary to handle the mechanical load of the applicator head and to initiate the peeling action. The “intermittent duty operation” described by the manufacturer is a perfect match for the duty cycle of many labeling applicators that activate only when a product is detected.
The brushed DC motor’s inherent simplicity is also a major advantage in this context. Its speed can be easily controlled by PWM (Pulse Width Modulation), and the direction of rotation can be reversed by simply changing the polarity of the supply. This makes it an ideal solution for a “rotator on bottle labeling equipment” where adjustable speed is necessary to synchronize with a moving production line. The motor provides a cost-effective and reliable solution for many industrial labeling tasks. While a more advanced motor could provide superior performance, the PGM-42-24-84-83-02 represents a classic example of a “good enough” engineering solution. The simpler control system and lower upfront cost make it a compelling choice for original equipment manufacturers (OEMs) who are building machinery for less demanding, price-sensitive markets. This deliberate trade-off prioritizes initial investment and ease of integration over the marginal performance gains of more complex systems.
Comparative Analysis: PGM-42-24-84-83-02 vs. Alternative Technologies
To fully understand the PGM-42-24-84-83-02’s place in the market, it must be evaluated against other motor technologies used in the packaging and industrial automation industry. The choice between a brushed DC, brushless DC, stepper, or servo motor is a strategic decision that affects not only performance but also system complexity, maintenance, and long-term cost.
Comparative Table of Motor Technologies
| Metric | Brushed DC | Brushless DC | Stepper | Servo |
| Initial Cost | Low | Higher | Low | Highest |
| Maintenance | Low | Low (no brushes) | Low (no brushes) | Low (long lifespan) |
| Lifespan | Shorter (due to brush wear) | Long | Long | Long |
| Efficiency | Lower (due to friction) | High | Lower (constant current) | Highest |
| Control Complexity | Simple (voltage control) | Complex (electronic controller) | Complex (electronic controller) | Complex (closed-loop feedback) |
| Precision/Control | Excellent (speed control) | Precise (speed/torque) | Exact (stepwise positioning) | Highest (speed, position, torque) |
| Ideal Application | Variable speed, intermittent duty, low-cost equipment | Continuous duty, high-efficiency, long-life, battery-powered | Exact positioning, open-loop control, 3D printers, CNC machines | High-speed, high-precision, dynamic, closed-loop motion control |
Brushed DC vs. Brushless DC Motors
The primary difference between these two motor types lies in their commutation. A brushed DC motor uses mechanical commutation, where physical brushes wear down over time and generate friction, which reduces efficiency and creates electrical noise.8 This wear-and-tear limits the motor’s operational lifespan. In contrast, a brushless DC (BLDC) motor uses an electronic controller for commutation, which eliminates physical contact and its associated friction. This results in significantly higher efficiency, a longer operational lifespan, and a dramatic reduction in maintenance requirements. While a BLDC motor has a higher initial cost due to its more sophisticated control electronics, its superior efficiency and minimal maintenance can lead to a lower total cost of ownership over the machine’s lifetime, especially in high-volume, continuous-duty applications.
Brushed DC vs. Stepper Motors
Stepper motors are fundamentally different in their mode of operation. Unlike brushed DC motors that provide continuous rotation when powered, stepper motors move in discrete, precise increments or “steps”. This makes them an excellent choice for applications that demand highly accurate and repeatable positioning, such as indexing or feeding a label to an exact spot on a conveyor. A key advantage of stepper motors is their ability to operate in an open-loop system, meaning they do not require feedback to maintain their position, which simplifies system design and reduces cost. While brushed DC motors are better suited for continuous, variable-speed motion, the choice between the two for a labeling machine is a choice between a system designed for a smooth, adjustable speed (brushed DC) and one designed for a precise, stepwise position (stepper).
Brushed DC vs. Servo Motors
Servo motors, which can be either brushed or brushless, represent the highest tier of motion control technology. These systems operate on a closed-loop principle, using an encoder or other feedback mechanism to provide real-time data on the motor’s position, velocity, and torque. This allows for exceptional precision, responsiveness, and the ability to maintain full torque at zero speed.2 Servo systems are the motor of choice for high-speed, dynamic, and high-tech applications where uptime and absolute precision are paramount, such as the “all-electric” systems used by many printing equipment OEM’s. The high initial cost and complexity of a servo system can be a barrier to entry. The PGM-42-24-84-83-02, a simple brushed DC gear motor, serves a different market segment where the performance demands do not justify the investment in a full servo system. It provides a foundational level of reliable motion control without the advanced capabilities and associated costs of a more sophisticated system.
Operational Insights and Recommendations
Longevity and Maintenance Considerations
A critical factor for any industrial component is its long-term operational viability. The PGM-42-24-84-83-02, as a brushed motor, has an inherent wear-and-tear limitation. The brushes and commutator are consumable parts that will inevitably degrade over time due to friction and arcing. This wear leads to a reduction in performance, increased electrical noise, and eventually, motor failure. The cost of replacement parts are key factors that must be included in the long-term operational budget and total cost of ownership calculation. This contrasts sharply with brushless alternatives, which have a significantly longer lifespan and require minimal oversight, largely limited to occasional inspection of the electronic controller.
System Integration and Control
The simple control requirements of the PGM-42-24-84-83-02 are a key advantage for system designers. A brushed DC motor can be controlled by a basic external controller and can be seamlessly integrated with a PLC, making it suitable for modern industrial systems. This simplicity is particularly appealing for straightforward applications where the designer is not required to manage the complex, real-time feedback loops of a servo or brushless system. However, this simplicity also highlights its position as a legacy technology. Modern industrial systems increasingly rely on advanced motion controllers and real-time diagnostics from feedback mechanisms like encoders to ensure performance and facilitate predictive maintenance, capabilities that are not inherent to a simple brushed DC motor.
Conclusion
The PGM-42-24-84-83-02 brushed planetary gear motor is a robust and highly capable component for the packaging and industrial automation industry. Its combination of a high-torque planetary gearhead and the simple, reliable nature of a brushed DC motor makes it an excellent choice for a wide range of intermittent-duty and variable-speed applications within a labeling machine. Its low initial cost and straightforward control requirements are key advantages, particularly for legacy system retrofits or new equipment designs targeting price-sensitive markets.
However, a prudent engineering approach dictates that this motor be selected with a full understanding of its inherent limitations. The significant discrepancies found in online data sources concerning critical specifications serve as a professional caution and emphasize the necessity of obtaining a formal datasheet directly from the manufacturer. Furthermore, the motor’s brushed design means it requires a routine inspection to determine brush wear, which must be factored into the total cost of ownership. For continuous-duty, high-speed, or high-precision labeling applications where downtime is a major concern, the analysis indicates that a brushless DC, stepper, or servo motor is the superior choice. While such a choice requires a higher initial investment, it provides a longer operational lifespan, reduced maintenance, and superior efficiency, ultimately future-proofing the system and proving more economical in the long run.
