WGMBL-WS40-12-100-28-S

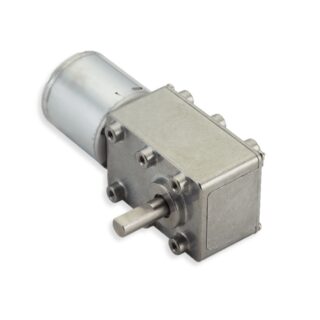

Ø40mm BLDC Worm Gear Motor
$186.94
Availability:
8 in stock
Ships in 3 to 5 business daysAbout WGMBL-WS40-12-100-28-S
The WGMBL-WS40-12-100-28-S is a powerful and efficient Ø40mm BLDC Worm Gear Motor with an Integrated Drive Circuit designed for 12VDC operation. This motor delivers reliable torque output and exceptional performance in a compact package, making it suitable for a wide range of applications.
With a diameter of 40mm and a length of 100.5mm, the WGMBL-WS40-12-100-28-S has a compact footprint, allowing for easy integration into space-constrained setups. It boasts a no-load speed of 28 RPM and draws only 0.55 A of current at no load, ensuring energy-efficient operation.
When under load, this gear motor is rated for a reliable torque of 8.75 kg.cm at a speed of 17 RPM, making it well-suited for driving mechanisms that require consistent torque output. Its robust design allows it to deliver a stall torque of 23 kg.cm with a stall current of 1.8A, ensuring reliable performance even in the most demanding operating conditions.
Featuring a precision gearbox consisting of a worm gear coupled with spur gears, its durable Brushed motor construction, the WGMBL-WS40-12-100-28-S offers long service life and consistent performance. With the reference ID MOT-I-81764-WG100, this motor can be easily identified and sourced for replacement or integration into existing systems.
Product Specifications
| Description | Value |
|---|---|
| Voltage | 12 |
| Voltage Type | VDC |
| Diameter (mm) | 40 |
| Length (mm) | 100.5 |
| No Load Speed (rpm) | 28 |
| No Load Current (A) | 0.55 |
| Rated Torque (kg.cm) | 8.75 |
| Rated Speed (rpm) | 17 |
| Stall Torque (kg.cm) | 23 |
| Stall Current (A) | 1.8 |
| Gearhead Type | Worm |
| Motor Type | Brushless |
| Brushless Type | Other |
| Series | WS40 |
| Reference ID | MOT-I-81764-WG100 |
Downloadable Resources for WGMBL-WS40-12-100-28-S
Below you will find links to resources for the WGMBL-WS40-12-100-28-S including a technical drawing, product datasheet, and product manual.
If a resource is unavailable for download, you may submit a request to the engineers at ISL Products International.
Frequently Asked Questions
General
The WGMBL-WS40-12-100-28-S is a powerful and efficient 40mm diameter brushed worm (left) gear motor designed for a variety of applications. This gear motor delivers high torque output and reliable performance in a compact package, making it suitable for a wide range of applications.
The WGMBL-WS40-12-100-28-S gear motor operates on a voltage of 12VDC. This voltage level provides a good balance between power and efficiency, suitable for a wide range of applications.
Performance
The no-load speed of the motor is 28 RPM. This speed ensures efficient operation, making it suitable for applications requiring reliable performance.
The gear motor has a rated torque of 8.75 kg.cm and a rated speed of 17 RPM. This means it can deliver consistent and reliable power output, making it ideal for applications that require steady and efficient performance under load conditions.
The WGMBL-WS40-12-100-28-S gear motor has a stall torque of 23 kg.cm and a stall current of 1.8A. These specifications indicate the motor's ability to handle heavy loads and demanding applications, ensuring reliable performance even under high-stress conditions.
Applications
The WGMBL-WS40-12-100-28-S gear motor is versatile and can be used in various applications including robotics, automation, industrial applications and other projects that require a compact and efficient gear motor. Its size and high performance make it perfect for space-constrained applications where power and efficiency are crucial.
Yes, the WGMBL-WS40-12-100-28-S gear motor is specifically designed for space-constrained applications. Its right angle configuration allows for easy integration into designs where space is limited, without compromising on performance and efficiency.
Additional Information
Yes, the WGMBL-WS40-12-100-28-S gear motor is specifically designed for space-constrained applications. Its right angle configuration allows for easy integration into designs where space is limited, without compromising on performance and efficiency.
Yes, bulk discounts are available. Please contact our sales team for additional information. For example, purchasing 100 units can significantly reduce the price per unit. Please refer to the bulk discount pricing table available on the product page. This table provides pricing details for different quantities, helping you make cost-effective decisions based on your order size.
For more information about the WGMBL-WS40-12-100-28-S worm gear motor, including detailed specifications, please refer to the Drawing/Datasheet section on the product page on our website.
