WGM-63-24-65-R-E
Ø63mm Brushed Worm (Right) Gear Motor w/ Encoder
$132.26
Availability:
10 in stock
Ships in 3 to 5 business daysAbout WGM-63-24-65-R-E

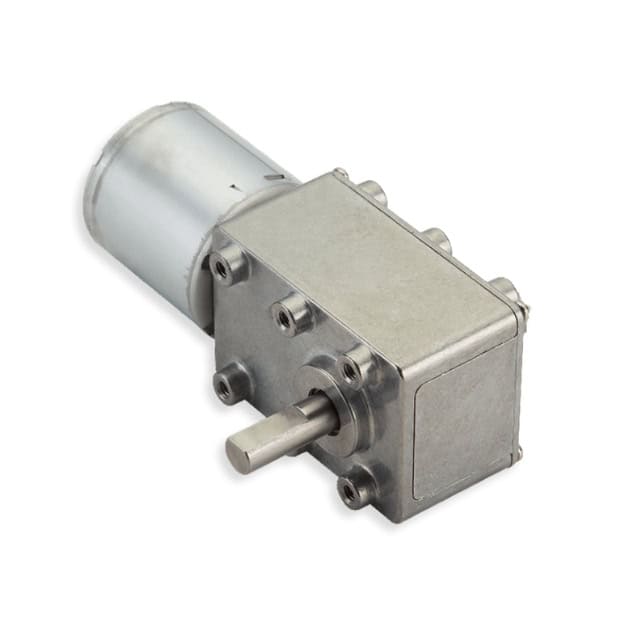

The WGM-63-24-65-R-E is a powerful and efficient Ø63mm Brushed Worm (Right) Gear Motor w/ Encoder designed for 24VDC operation. This motor delivers high torque output and reliable performance in a compact package, making it suitable for a wide range of applications.
With a diameter of 63mm and a length of 171.2mm, the WGM-63-24-65-R-E has a small footprint, allowing for easy integration into space-constrained setups. It boasts a no-load speed of 65 RPM and draws only 1.2A of current at no load, ensuring energy-efficient operation.
When under load, this gear motor is rated for an impressive torque of 92 kg.cm at a speed of 53 RPM, making it well-suited for driving mechanisms that require high torque output. Its robust design allows it to deliver a staggering stall torque of 510 kg.cm with a stall current of 25A, ensuring reliable performance even in the most demanding operating conditions.
Featuring a precision Worm gearhead and a durable Brushed motor construction, the WGM-63-24-65-R-E offers long service life and consistent performance. With the reference ID MOT-63WGM-R65E, this motor can be easily identified and sourced for replacement or integration into existing systems.
Product Specifications
| Description | Value |
|---|---|
| Voltage | 24 |
| Voltage Type | VDC |
| Diameter (mm) | 63 |
| Length (mm) | 171.2 |
| No Load Speed (rpm) | 65 |
| No Load Current (A) | 1.20 |
| Rated Torque (kg.cm) | 92.00 |
| Rated Speed (rpm) | 53 |
| Stall Torque (kg.cm) | 510.00 |
| Stall Current (A) | 25 |
| Gearhead Type | Worm |
| Motor Type | Brushed |
| Series | W63 |
| Reference ID | MOT-63WGM-R65E |
2D Drawing for WGM-63-24-65-R-E and Datasheet
Below you will find links to the 2D technical drawing, along with the datasheet, if they are available for download.
If either the drawing or datasheet is not available, you may submit a request to ISL Products International below.
Frequently Asked Questions
General
The WGM-63-24-65-R-E is a powerful and efficient 63mm diameter brushed worm (left) gear motor designed for a variety of applications. This gear motor delivers high torque output and reliable performance in a compact package, making it suitable for a wide range of applications.
The WGM-63-24-65-R-E gear motor operates on a voltage of 24VDC. This voltage level provides a good balance between power and efficiency, suitable for a wide range of applications.
Performance
The no-load speed of the motor is 65 RPM. This speed ensures efficient operation, making it suitable for applications requiring reliable performance.
The gear motor has a rated torque of 92.00 kg.cm and a rated speed of 53 RPM. This means it can deliver consistent and reliable power output, making it ideal for applications that require steady and efficient performance under load conditions.
The WGM-63-24-65-R-E gear motor has a stall torque of 510.00 kg.cm and a stall current of 25A. These specifications indicate the motor's ability to handle heavy loads and demanding applications, ensuring reliable performance even under high-stress conditions.
Applications
The WGM-63-24-65-R-E gear motor is versatile and can be used in various applications including robotics, automation, industrial applications and other projects that require a compact and efficient gear motor. Its size and high performance make it perfect for space-constrained applications where power and efficiency are crucial.
Yes, the WGM-63-24-65-R-E gear motor is specifically designed for space-constrained applications. Its right angle configuration allows for easy integration into designs where space is limited, without compromising on performance and efficiency.
Additional Information
Yes, the WGM-63-24-65-R-E gear motor is specifically designed for space-constrained applications. Its right angle configuration allows for easy integration into designs where space is limited, without compromising on performance and efficiency.
Yes, bulk discounts are available. Please contact our sales team for additional information. For example, purchasing 100 units can significantly reduce the price per unit. Please refer to the bulk discount pricing table available on the product page. This table provides pricing details for different quantities, helping you make cost-effective decisions based on your order size.
For more information about the WGM-63-24-65-R-E worm gear motor, including detailed specifications, please refer to the Drawing/Datasheet section on the product page on our website.
