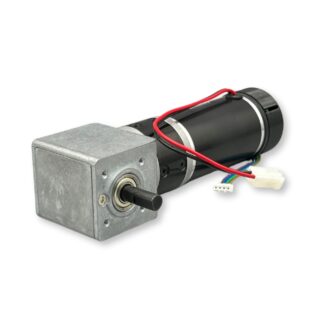

Electric gear motor with encoder and wires

RPGM-42CR-24-4-1125-04E

Ø42mm Brushed Planetary – Right Angle Gear Motor with Magnetic Encoder

SKU: MOT-I-81735-4CRE

$328.50

Availability:

8 in stock (can be backordered)

Ships in 3 to 5 business days
**Lead times for back orders are 7-8 weeks.
Bulk Discount Pricing
QuantityAmount*
1 – 9$328.50
10 – 99$315.23
100+$215.93
Need larger quantities?
Volume Pricing
*Prices shown are in USD

About RPGM-42CR-24-4-1125-04E

The RPGM-42CR-24-4-1125-04E is a high-quality 42mm Brushed Planetary Right Angle Gear Motor with Magnetic Encoder. It is designed to provide efficient and reliable performance for a wide range of applications. With a rated voltage of 24VDC, this gear motor offers a powerful and consistent performance.

Featuring a compact and durable design, the RPGM-42CR-24-4-1125-04E is built to withstand the demands of various industrial and commercial environments. Its brushed motor type ensures smooth and precise operation, while the planetary right angle gearhead type provides excellent torque and speed control. The 2 channel (5 PPR) magnetic encoder offers reliable motor feedback.

The RPGM-42CR-24-4-1125-04E is equipped with a 4:1 gear reduction ratio, allowing for optimal power transmission and torque output. It has a no-load speed of 1,125RPM and a no-load current of 0.8A, ensuring efficient operation even under light loads. With a rated torque of 1.8 kg.cm and a rated speed of 800 RPM, this gear motor delivers consistent and reliable performance.

With a stall torque of 6.35 kg.cm and a stall current of 4.5 A, the RPGM-42CR-24-4-1125-04E is capable of handling heavy loads and providing reliable torque output. With a reference ID of MOT-I-81735-4CRE, its compact size and versatile design make it suitable for a wide range of applications, including robotics, automation, and industrial machinery.

Wire Harness Specifications:

  • Motor Power:
    • AWG20, UL1015 / UL1430
    • Red (+) / Black (-)
    • Connector: Molex 09-50-3021
  • Encoder:
    • AWG26, UL1007
    • Connector: JST PHR-4

Product Specifications

Description Value
Voltage24
Voltage TypeVDC
Diameter (mm)42
Length (mm)158.9
No Load Speed (rpm)1125
No Load Current (A)0.80
Rated Torque (kg.cm)1.8
Rated Speed (rpm)800
Stall Torque (kg.cm)6.35
Stall Current (A)4.5
Gearhead TypePlanetary - Right Angle
Motor TypeBrushed
Series42CR
Reference IDMOT-I-81735-4CRE

Downloadable Resources for RPGM-42CR-24-4-1125-04E

Below you will find links to resources for the RPGM-42CR-24-4-1125-04E including a technical drawing, product datasheet, and product manual.

If a resource is unavailable for download, you may submit a request to the engineers at ISL Products International.

Datasheet
Submit a Request

Frequently Asked Questions

General

What is the RPGM-42CR-24-4-1125-04E?

The RPGM-42CR-24-4-1125-04E is a high-quality 42mm diameter brushed planetary gear motor designed for various applications requiring reliable and efficient performance. It offers several benefits such as:

  • Reliable and efficient performance: This ensures consistent operation and reduces the risk of downtime in your projects.
  • Compact size ( 42mm diameter and 158.9mm length): This allows for easy integration into space-constrained designs.

What voltage does the motor operate on?

The motor operates on a voltage of 24VDC. This offers a good balance between power and efficiency for many applications.

Performance

What is the no-load speed of the motor?

The no-load speed of the motor is 1125 RPM. This allows for achieving high speeds when no load is applied.

What is the rated torque of the motor?

The rated torque of the motor is 1.8 kg.cm. This provides enough power for many applications while maintaining efficient operation.

What is the stall torque of the motor?

The stall torque of the motor is 6.35 kg.cm. This high torque allows the motor to handle heavy loads without stalling, making it suitable for demanding tasks.

What type of gearhead does the motor use?

The motor uses a planetary gearhead type. This offers several benefits:

  • Efficient torque transmission: Ensures minimal power loss between the motor and the output shaft.
  • Smooth operation: Reduces vibrations and noise for improved performance.

Applications

What are some applications for the RPGM-42CR-24-4-1125-04E?

This motor is suitable for a wide range of applications due to its:

  • High-quality construction: Ensures a long lifespan and reliable operation.
  • Reliable performance: Minimizes downtime and maintenance needs.
  • Ability to handle heavy loads: Makes it suitable for demanding tasks.
  • Compact size: Allows for integration into space-constrained applications.

Some specific examples include robotics, automation, and industrial machinery.

Are there any other planetary gear motors available?

Yes, ISL Products offers a variety of other planetary gear motors in different sizes and specifications. This allows you to choose the motor that best suits your specific application requirements.  You can find them under the "Related products" section or by browsing the "Planetary Gear Motors" category.

Additional Information

How much does the RPGM-42CR-24-4-1125-04E cost?

The motor costs $328.50 with lower prices available on bulk orders.

Do you offer bulk discounts?

Yes, ISL Products offers bulk discount pricing for the RPGM-42CR-24-4-1125-04E. You can see the discount tiers on the product page.

Where can I find more information about the motor?

You can find additional information on the product page, including a description, product specifications, and a datasheet. The datasheet might contain details on factors like efficiency, noise levels, and operating temperature range.
