CPLR-FJ-6-10-30-25-AL-P

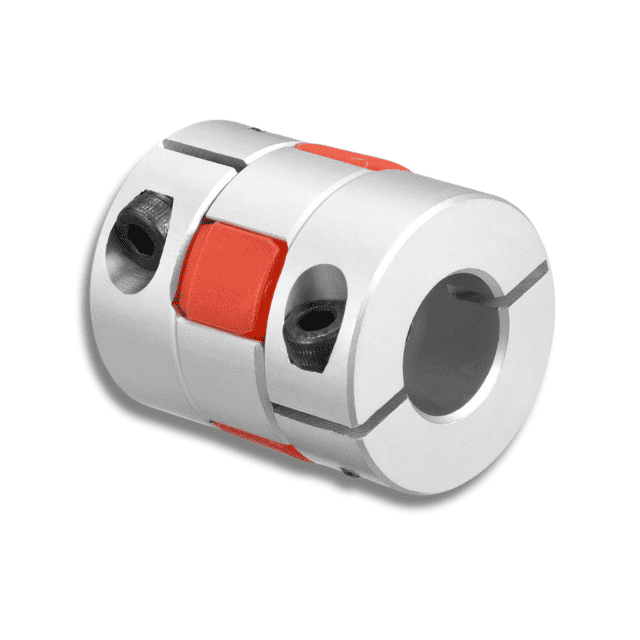

6mm x 10mm Flexible Jaw Coupling
$17.55
Availability:
2 in stock
Ships in 3 to 5 business daysAbout CPLR-FJ-6-10-30-25-AL-P
Introducing the CPLR-FJ-6-10-30-25-AL-P—a precision-engineered flexible jaw coupling designed for seamless power transmission and optimal misalignment compensation in industrial and automation applications. This coupling is specifically tailored to connect shafts with bore diameters of 6 mm and 10 mm, featuring a compact design with an overall length of 30 mm and an overall diameter of 25 mm. Crafted from high-grade aluminum and equipped with durable polyurethane bushings, and a reference ID of MTL-CPLR-6X10, it is engineered for high-speed operation up to 15,000 rpm and precise torque transmission at 1.0×10⁻⁶ kg.cm², all secured with reliable M3 clamping screws.
Key Features:
-
Dual Shaft Compatibility:
Precisely designed to connect shafts with 6 mm and 10 mm bores, ensuring a secure and consistent interface that efficiently accommodates minor misalignment. -
Robust, Lightweight Construction:
Manufactured from premium aluminum for enhanced durability, coupled with polyurethane bushings that provide excellent vibration damping and shock absorption for smoother operation. -
Compact, Space-Saving Design:
With an overall length of 30 mm and a diameter of 25 mm, this coupling is perfect for applications where space is limited without compromising on performance. -
High-Speed Performance:
Engineered to operate at speeds up to 15,000 rpm, making it an ideal solution for high-performance machinery and rapid rotational applications. -
Precise Torque Transmission:
Designed to transmit a maximum torque of 1.0×10⁻⁶ kg.cm², ensuring efficient power transfer with minimal energy loss, essential for precision operations. -
Secure and Easy Installation:
Featuring M3 clamping screws, the coupling provides a secure, reliable connection that facilitates quick and straightforward installation.
Product Specifications
| Description | Value |
|---|---|
| Coupling Type | Flexible Jaw Coupling |
| Shaft Bore Diameter A (mm) | 6 |
| Shaft Bore Diameter B (mm) | 10 |
| Overall Length | 30 |
| Overall Diameter | 25 |
| Coupler Material | Aluminum |
| Bushing Material | Polyurethane |
| Max. Speed Rating (rpm) | 15000 |
| Max. Torque Rating | 1.0x10-6 kg.cm2 |
| Clamping Screw Type | M3 |
